Case study

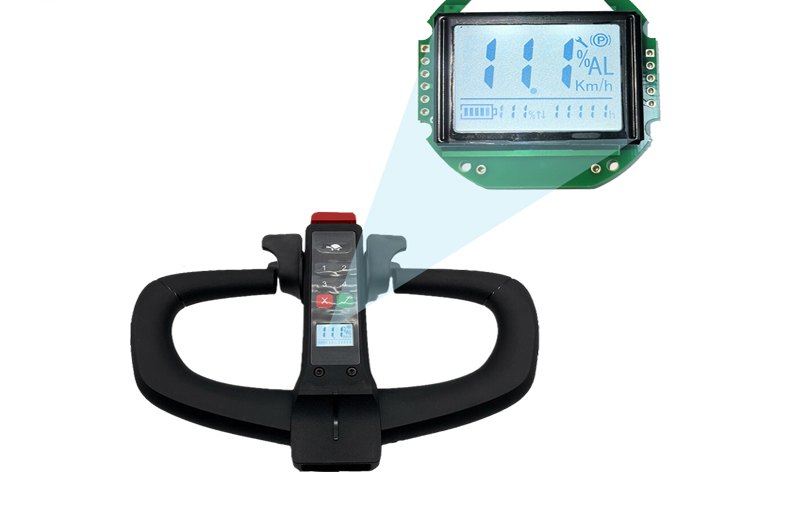

Display Module for an Electric Forklift Handle
Battery state, hours and fault codes on a module built into the control handle of an electric forklift.
The requirement
The handle of an electric forklift is where the operator already looks, so the display belongs there — but it also sees vibration, hydraulic oil and temperature swings in a warehouse or outdoors.
What we supplied
- Segment module with a sealed outline for handle mounting
- Fields for battery state, hour meter, speed and fault codes
- Vibration-resistant mounting that keeps contact pressure stable
- Pinout matched to the vehicle controller
Why segment LCD
The parameters are a fixed set and must be readable at a glance while driving. A segment display gives the contrast without the firmware load of a graphic module.
