Case study

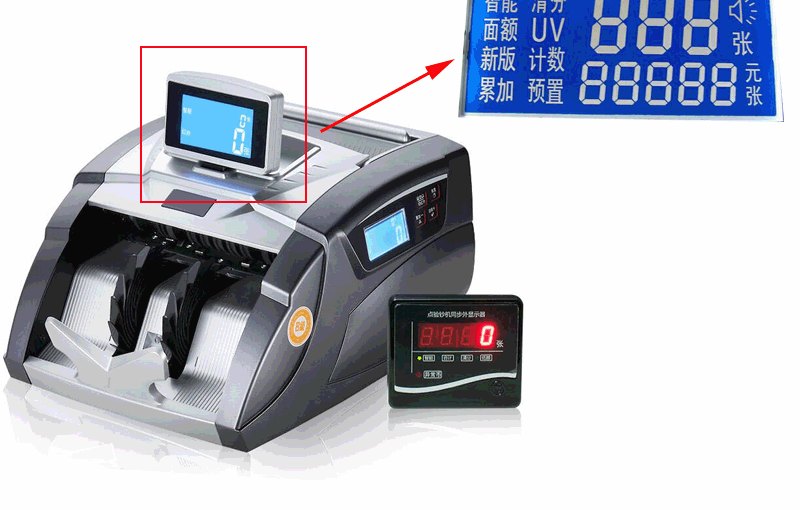

Segment LCD for a Banknote Counter
Count, batch setting and error states on equipment that runs all day in a retail or bank counter.
The requirement
A note counter is used continuously, so the display has to be readable at a glance from a standing position and must state error conditions precisely — a jam, a suspected counterfeit or a double feed each need their own message.
What we supplied
- Segment layout with a large count field plus batch and mode indicators
- Dedicated error indicators rather than a single generic alarm
- Backlight with defined brightness for counter environments
- Outline matched to the existing machine fascia
Result
Operators identify the error from the display instead of opening the machine, which shortens downtime in continuous use.
