Case study
LCD for a Three-Phase Digital Energy Meter
Multi-digit readout with phase and unit indicators for a meter that is checked in cabinets and at night.
The requirement
Three-phase meters are read in distribution cabinets, often with poor lighting, and the reading has to be unambiguous: which phase, which unit, decimal point in the right place.
What we supplied

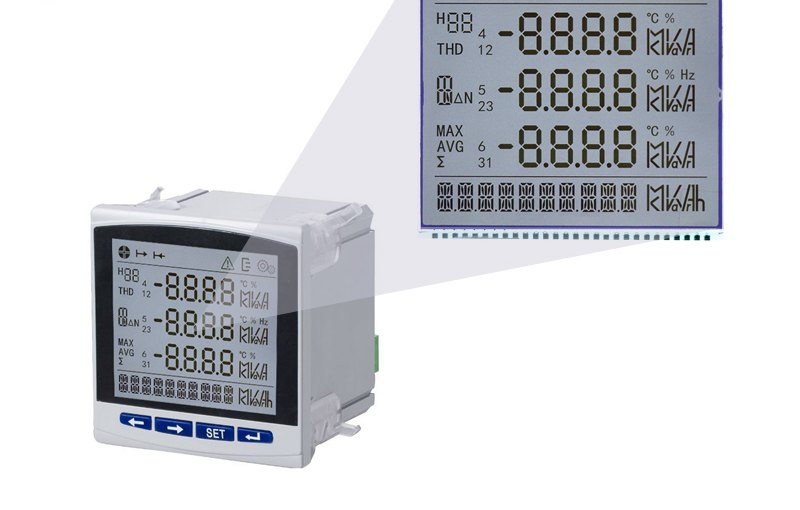

- Multi-digit segment layout with dedicated phase and unit indicators
- Backlit version so the reading stays legible inside a cabinet
- Wide viewing angle for technicians standing below the panel
- Layout fixed to the meter standard the customer works to
Validation
Batch consistency matters more than peak performance here: meters are installed in large numbers and every unit has to read the same. Outgoing inspection is 100% with electrical parameters verified per batch.
