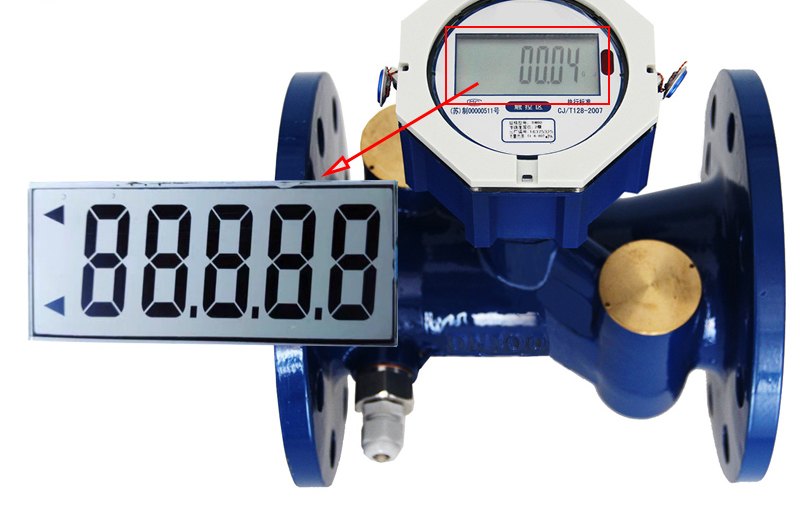

Why Water Meter Displays Fail in the Field (and How to Specify Against It)
Failures appear long after the warranty conversation
A water meter is expected to work for a decade in a pit, a basement or a cabinet. Displays that pass an incoming inspection can still fail in year three. These are the modes we see most, and what prevents them.
1. Polarizer degradation
UV, humidity and heat slowly break down the polarizer, which shows as fading contrast or a brownish tint. Prevention: UV-resistant polarizer grades, and a mechanical design that keeps direct sunlight and standing moisture off the glass.
2. Condensation and sealing
Temperature cycling pulls moisture into the housing. Prevention: sealing specified at the housing level, and a display stack that tolerates the humidity range of the installation site — not just the lab.
3. Contact corrosion
Zebra and pin contacts corrode when moisture reaches them, producing intermittent or missing segments. Prevention: appropriate plating for the environment, and pressure that stays consistent over the product life rather than relying on a soft gasket alone.
4. Fading at low temperature
LCD response slows as temperature drops; a display that is crisp at 20 °C can look weak at -10 °C. Prevention: choose the fluid and polarizer for the real operating range, and validate at the cold end, not only at room temperature.
5. Mechanical stress from the housing
Uneven pressure darkens areas of the display or creates ghosting. Prevention: define the pressure area and tolerance with the housing supplier, and keep the display outline simple where the housing flexes.
6. ESD during assembly
Damage from handling often appears as a single dead segment weeks later. Prevention: ESD-safe handling at your line and ours, plus agreed inspection criteria for segment function before packing.
What to ask for in the specification
- Operating and storage temperature, and the humidity range
- Polarizer grade and UV resistance
- Connector plating and the mechanical pressure design
- Temperature cycling and humidity test reports
- A sample batch for a field trial before volume commitment
Tell us where the meter is installed and how long it must last; those two answers shape every choice above.
