Segment LCD vs Dot-Matrix vs TFT: Which One Does Your Product Need?
Start from the information, not the technology
The question is never “which screen is best” — it is “what does the user have to read, and in what light”. Work through the order below and the technology usually chooses itself.
1. Is the content fixed?
If the product shows a defined set of digits, icons and units, a segment LCD is almost always the right answer. Contrast is high, current is low, the driver is simple and the unit cost is the lowest of the three. Meters, thermostats, appliance panels and most instruments fall here.
2. Is the content text, but structured?

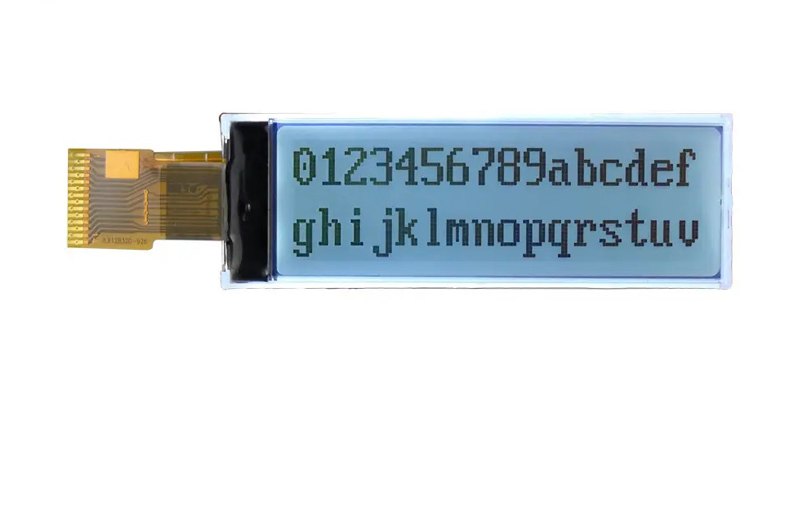

If you need several lines of characters, a menu or a simple bar graph, a dot-matrix module (COB or COG) fits. You gain flexibility in what can be displayed and keep a moderate current draw. The trade-off is more firmware: character sets, initialisation sequences, partial updates.
3. Is the content graphical or colour?
Curves, images, colour states or a touch interface point to a TFT. Expect a step up in current, unit cost and software complexity — a graphics stack, more memory, a faster controller. That is worth paying for when the graphics carry information the user actually needs.
The two expensive mistakes
- Choosing a TFT for a battery product with a fixed readout. The current budget and the software cost both blow up for information a segment display would have shown more legibly in sunlight.
- Choosing a segment display for content that keeps changing. Every new field means new tooling, so a product whose readout evolves should start on a dot-matrix module.
Where the line usually sits
Ask one more question: how many times will the layout change during the product life? Zero or once — segment. Occasionally — dot matrix. Continuously, or driven by app content — TFT.
